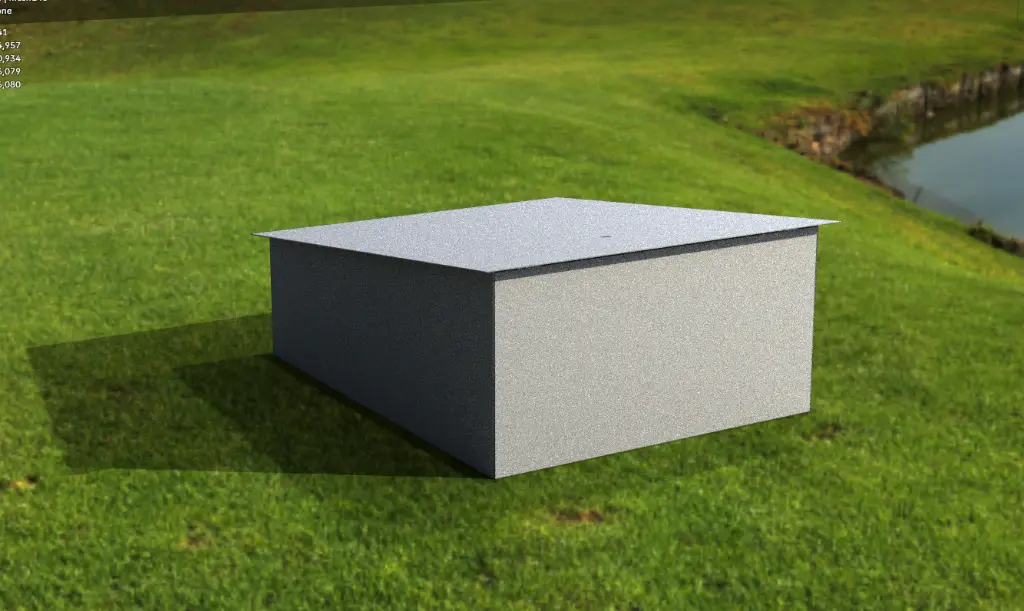

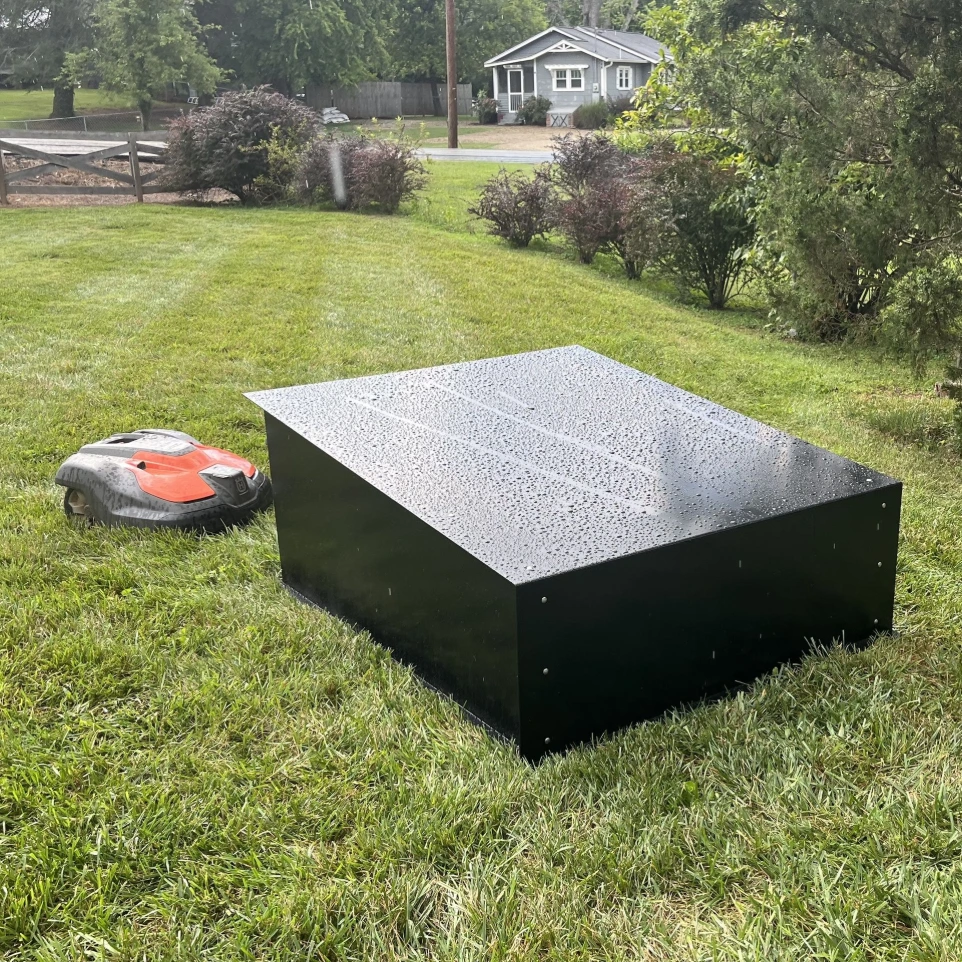

Mower Box L
The Premium Garage Solution for Large Robotic Mowers

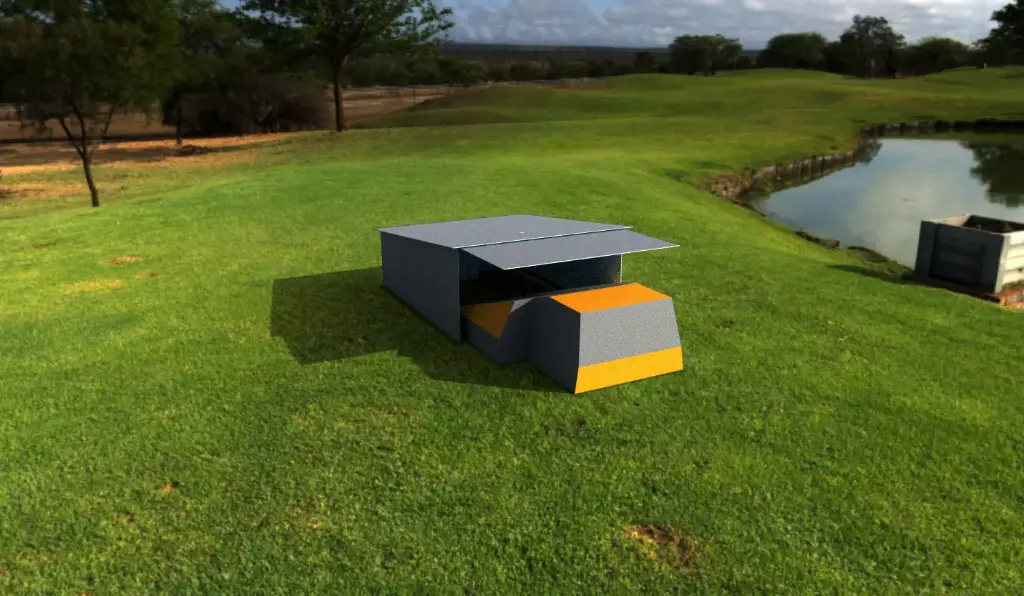

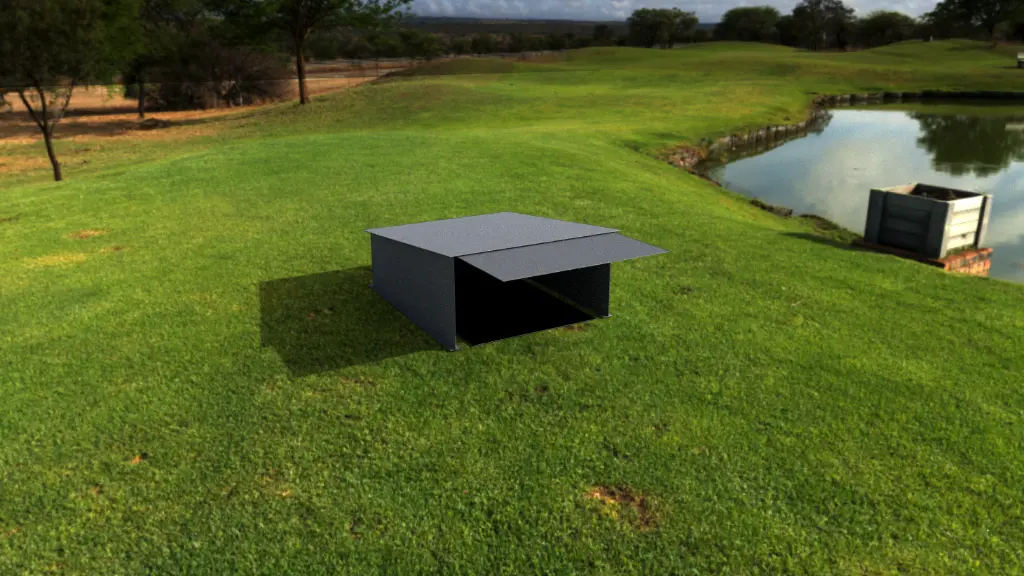

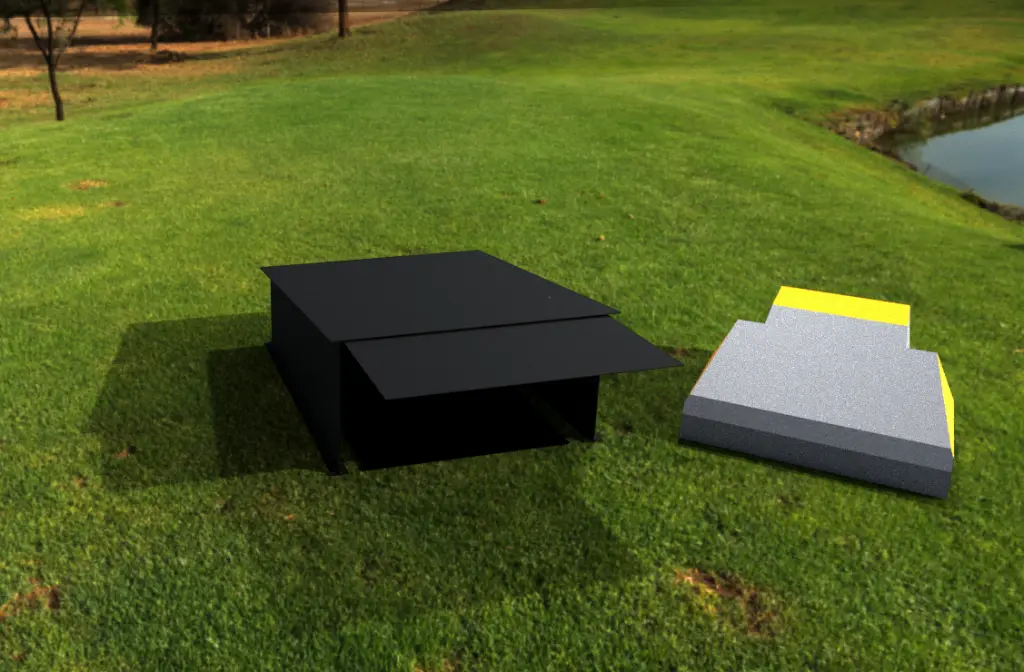

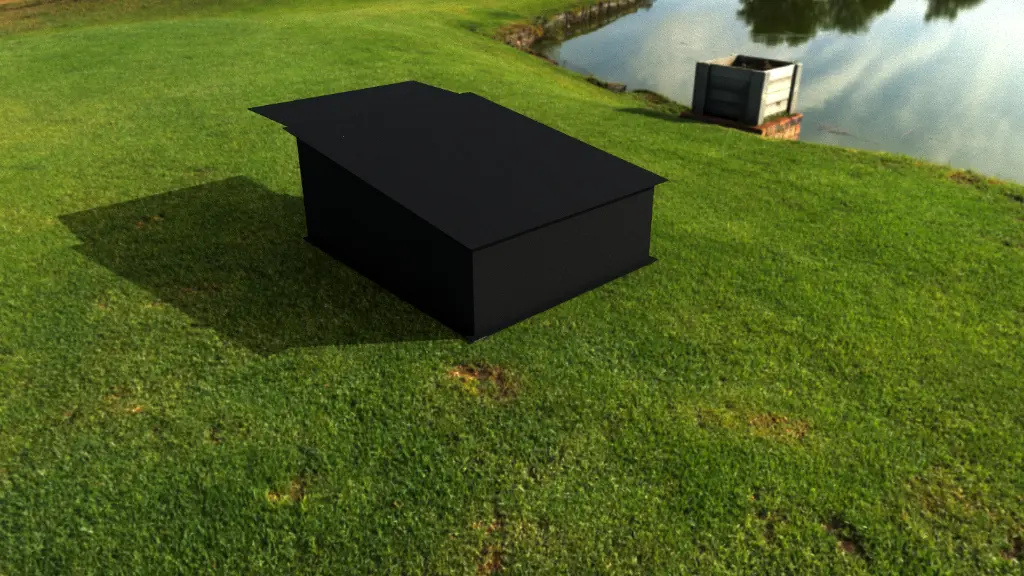

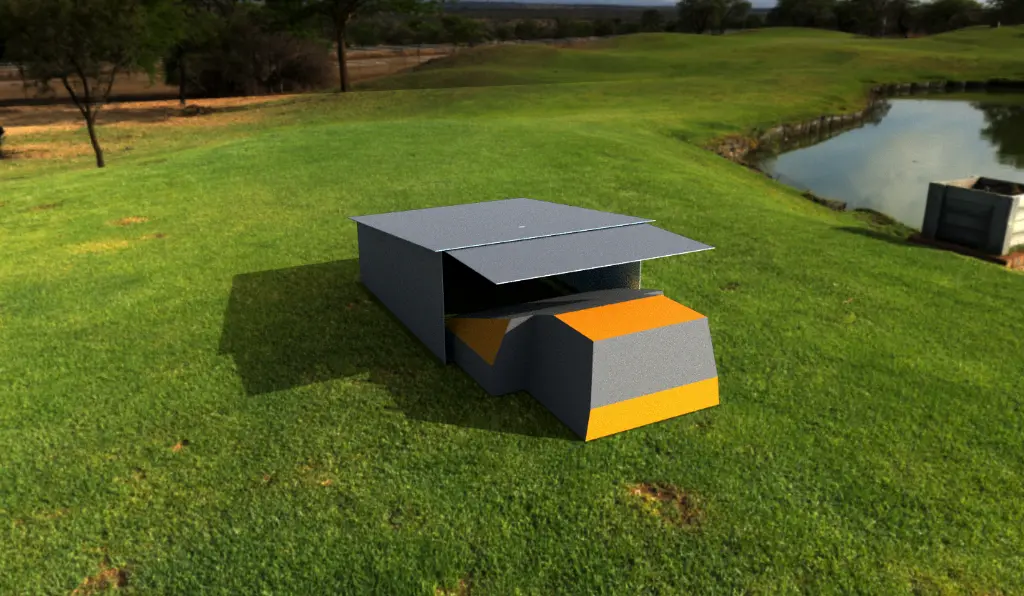

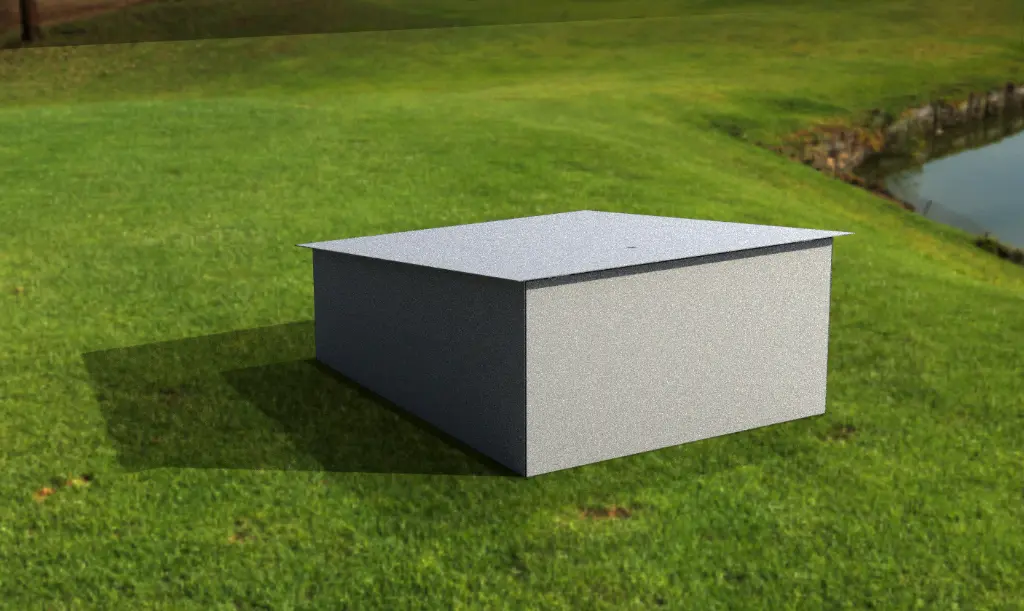

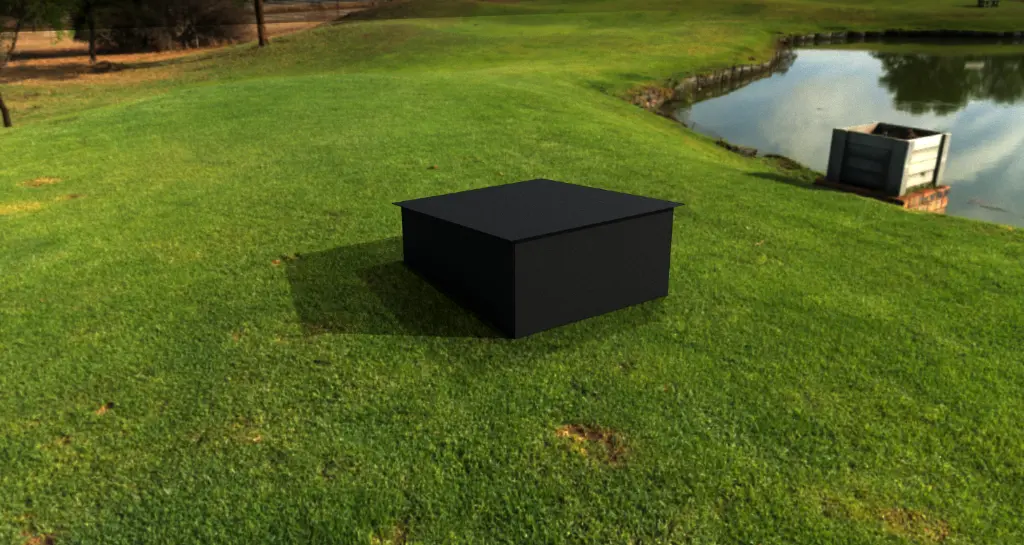

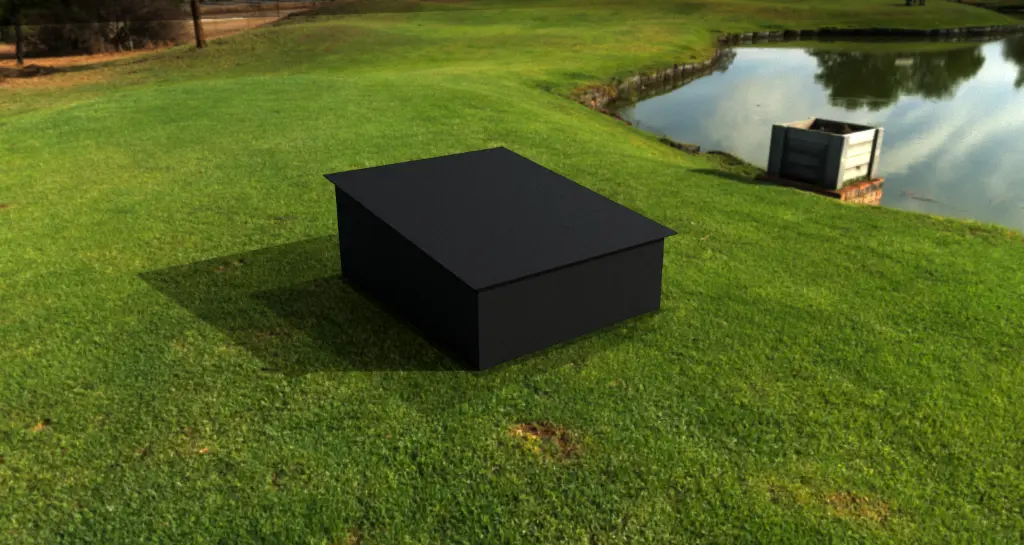

Introducing the Mower Box L, the large-format robotic mower garage meticulously engineered to provide comprehensive protection, convenient charging, and enhanced aesthetics for your valuable robotic lawnmower. Purpose-built as a robust and stylish shelter, the Mower Box L offers a significant upgrade from basic mower covers, ensuring your unit remains secure, protected from the elements, and always ready for action.
Key Benefits and Features:
- Comprehensive Protection: Provides robust cover against rain, sun, and other environmental factors, extending the lifespan of your robotic mower.
- Integrated Charging Station: Offers a dedicated, undercover space for your robotic mower to charge, keeping it dry and secure during downtime.

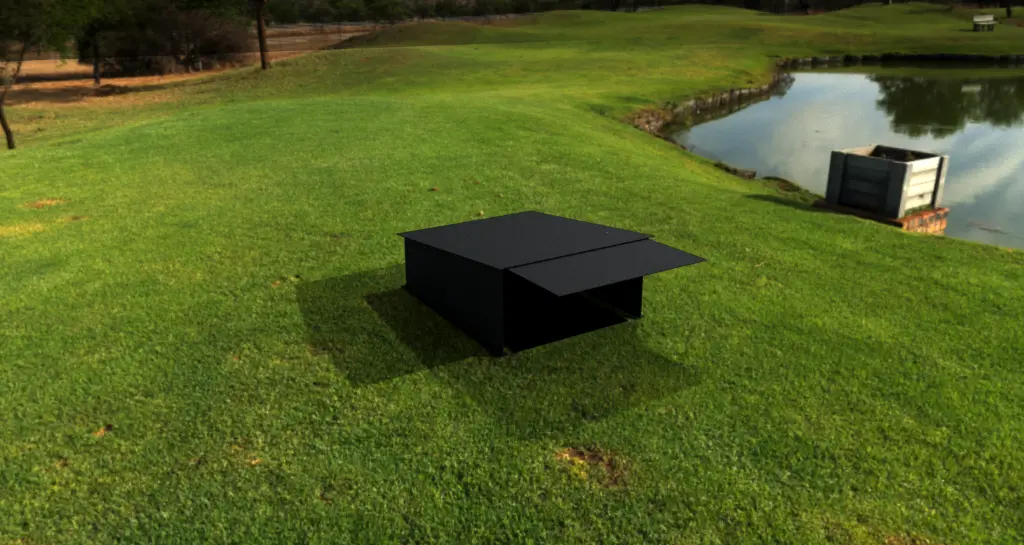

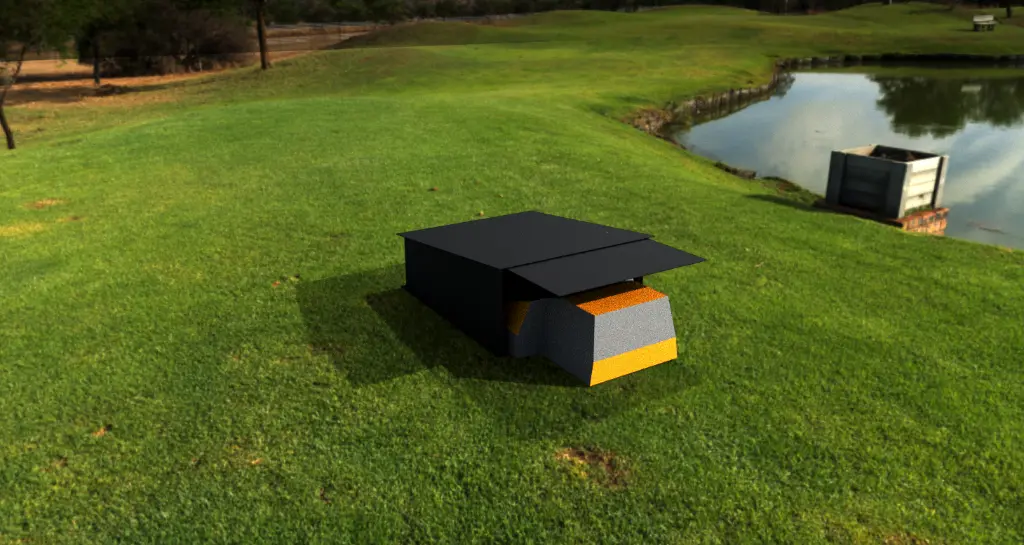

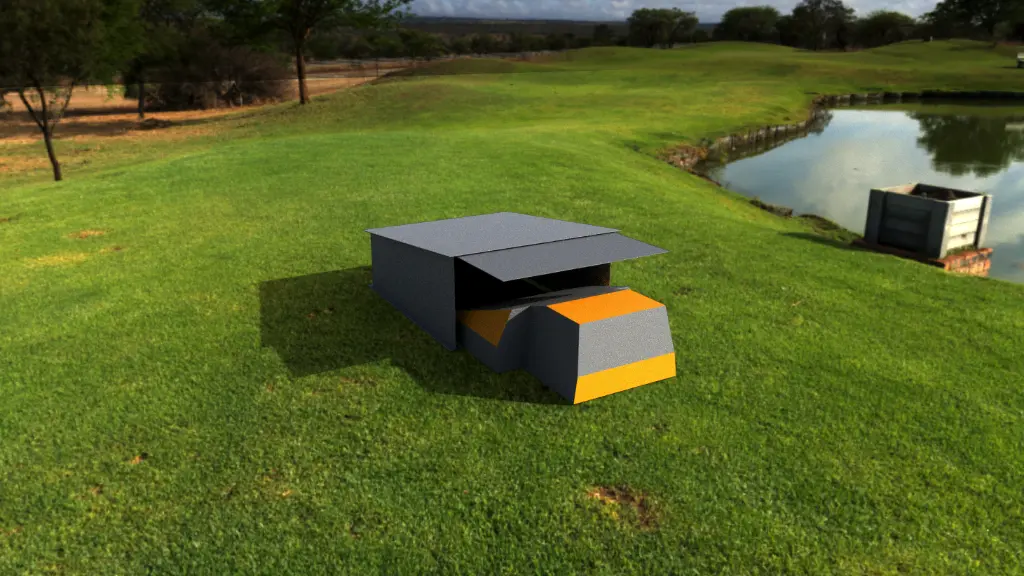

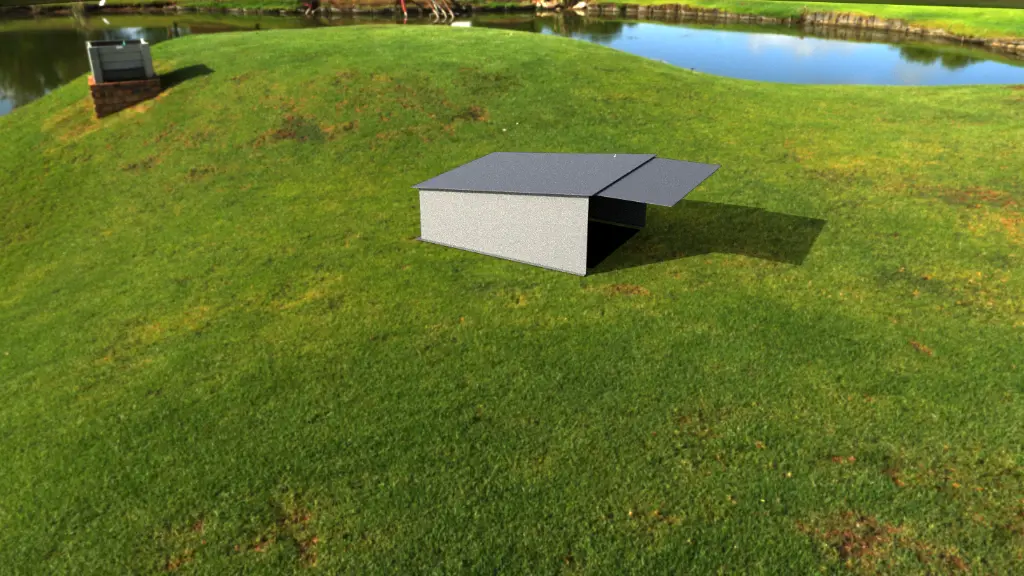

- Optional Automated Garage Door: Enhance security and convenience with an optional automated garage door system. This door can be set to close and open automatically, providing an extra layer of protection and a sleek, integrated look.
- Note: Designed to potentially accommodate two HUSQVARNA 550 EPOS models. Consideration is being given to using dual sensors to automate the door, closing only when both robots are present and opening if one is absent.
- Enhanced Security: The optional automated door offers a secure enclosure, deterring theft and unauthorized access.
- Sun Damage Prevention: Protect your robotic mower from harmful UV rays, preventing fading and damage to its components. 1 Why is a Garage important for a Robot Lawn Mower? - Auto-Mow
- Improved Aesthetics: Elevates the look of your lawn with a thoughtfully designed and well-built garage for your robotic mower.
- Cost-Effective Alternative: Positioned as a more accessible and cost-conscious alternative to high-end robotic mower shelters like the Power Shed by Solar Alliance.
- Wide Compatibility: The Mower Box L is designed to accommodate:
- One HUSQVARNA Ceora

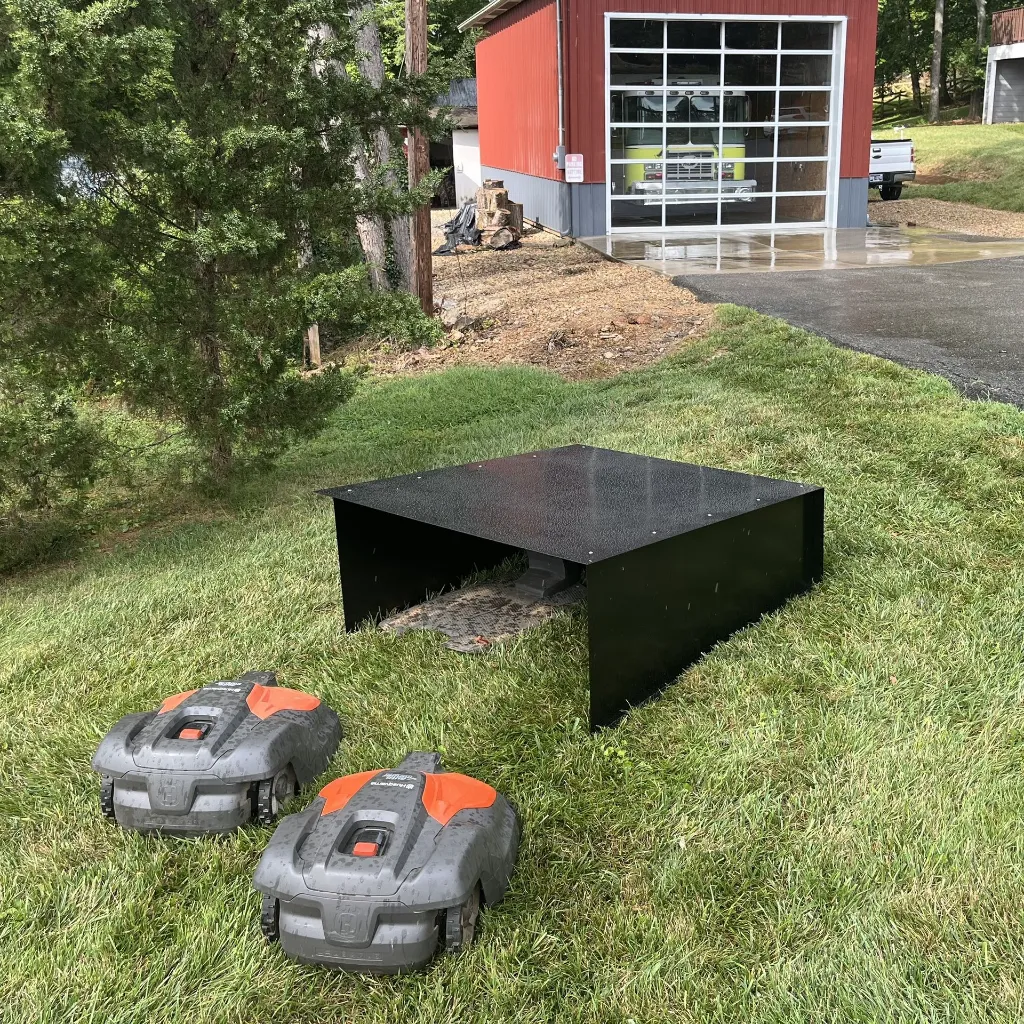

- Two HUSQVARNA 550 EPOS models
- One KRESS 236
- One KRESS 233
- Two smaller size KRESS models (174, 173, 172, or 161)
- Convenient Access: Features an access hatch (9 in x 8 in) that primarily provides access to the door electronics.
- Durable and Corrosion Resistant Construction: Made primarily of 306 Stainless Steel for exceptional strength and longevity, offering excellent corrosion resistance. The main door is constructed from 5052 Aluminum.
- Easy Assembly and Disassembly: Designed to be fully assemble-able and disassemble-able on site for convenient transportation and setup.
- Ground Protection: Features feet to reduce pressure on the ground and prevent sinking into soft surfaces.
- Weatherproof Electronics: The internal electronics are IP rated to ensure weatherproof operation.
- Sleek Hardware: Utilizes sleek carriage bolts for a clean and secure finish.
Dimensions (Maximum):
- Width: 52 inches
- Height: ~25.5 inches
- Depth: ~64 inches
Weight:
- The exact weight is still to be determined. We plan to either use a scale with the steel plate or calculate the approximate weight based on the amount and density of the materials used.
Materials:
- Body: 306 Stainless Steel (excluding main door)
- Main Door: 5052 Aluminum
Paint:
- The paint finish is currently under consideration. It will be a corrosion-resistant paint. We are considering the potential for heat absorption with black paint and the inherent corrosion resistance of 306 Stainless Steel, with the possibility of using unpainted 306 SS or potentially 316 SS for enhanced corrosion resistance.
Hatch Access Dimensions:
- 9 inches by 8 inches
Required Power:
- Requires at least 150 Watts AC and is designed to work with a standard 120V outlet. A DC version may be offered in the future if needed.
Solar Add-on Capability:
The Mower Box L is designed with the capability for a solar add-on kit to allow for off-grid operation. We are currently running tests to determine the power consumption of the unit before finalizing the specifications for the solar panels and battery system.
The Mower Box L offers a unique and robust solution for robotic mower owners seeking superior protection, convenience, and an aesthetically pleasing alternative to existing market options. We will provide further details on weight, paint options, and the solar kit as they become available.
