Pik’r™-X

The Industry's Most Versatile Range Picking Robot

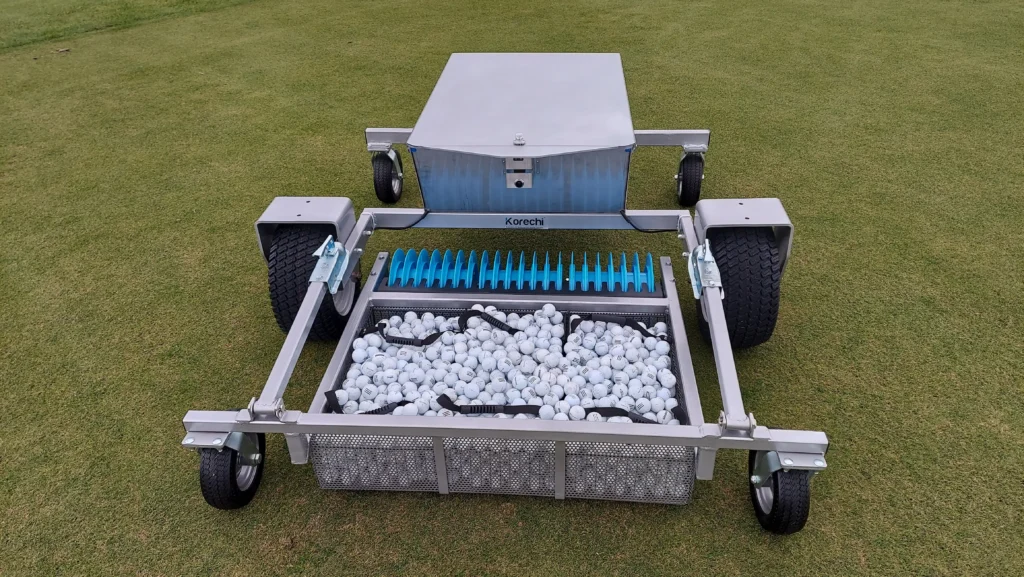

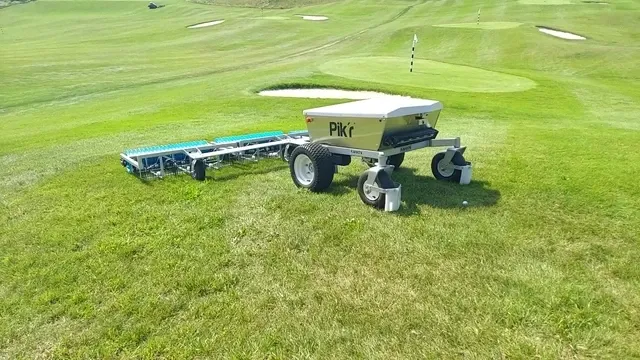

Developed in stealth, the Korechi Pik'r™-X is the newest and most versatile member of Korechi’s innovative range picking robot family. This cutting-edge robot is engineered to revolutionize golf ball collection, working efficiently with up to 5 gangs of purpose-built range pickers (up to 18ft wide). Its exceptional maneuverability allows for sharp turns and the ability to climb most steep slopes, making it suitable for a wide range of driving range layouts.

Industry-Leading Features for Unmatched Performance:

The Pik'r™-X boasts a suite of industry-leading features designed for optimal efficiency and reliability:

• Advanced Sensor Array: Equipped with a sophisticated sensor array for comprehensive obstacle detection and avoidance, ensuring safe and autonomous operation.
• High-Precision Satellite-Guided Autonomous Navigation: Utilizes multi-constellation multi-band GNSS RTK with dual antenna for centimeter-level accuracy, ensuring precise and efficient ball collection.


• Extended Continuous Runtime: Available in two models: Pik'r X with up to 12 hours of continuous runtime and Pik'r XL with an impressive runtime of up to 18 hours.
• High Ball Capacity: Capable of picking up to 7,500 golf balls per circuit with a 5-gang configuration. Each gang features 3 baskets, each holding up to 500 golf balls.
• Artificial Intelligence (AI): Intelligent AI monitors basket capacity, automatically detecting when baskets are full and prompting the robot to return to its default home position for emptying.


• Optional Ball-Dumping Mechanism: Enhance efficiency with an optional automatic ball-dumping mechanism, streamlining the collection process.


• Robust Construction: Features a durable body with a powder-coated welded steel tube chassis, stainless steel components, and an impact-resistant polymer cover, ensuring longevity in demanding environments.
• Excellent Traction: Equipped with 18” tubeless commercial-grade turf tires for optimal grip and maneuverability on various surfaces.
• Comprehensive Collision Avoidance: Incorporates 360° cameras using artificial intelligence, along with physical and remote e-stop capabilities for enhanced safety.


• Long-Lasting Battery: Powered by a safe lithium chemistry battery with an expected lifespan of 10+ years.


• Mobile App Connectivity: The Pik'r Connect mobile application allows users to communicate with the robot, check its current status, edit, and update scheduled tasks.


• Proudly Made in Canada: Ensuring high-quality manufacturing and reliable performance.

Key Differentiators:

• Very versatile, adapting to various range layouts and obstacles.
• Gets closer to obstacles for more thorough ball collection.
• Offers the highest ball capacity in its class.
• Available with an optional automatic ball-dumping mechanism.



Specifications:

• BODY: Powder-coated welded steel tube chassis, stainless steel, and impact-resistant polymer cover
• Traction: 18” turf tires
• Dimensions (LxWxH): 83” x 48” x 28” (2.1m x 1.2m x 0.7m)
• Weight: Up to 550 lb (390 kg)
• Maximum Speed: 3.7 mph (7 kph)
• Coverage: Up to 10.4 acres per hour (5 gangs)
  • 2 Gang: 4.2 Acres Per Hour
  • 3 Gang: 6.2 Acres Per Hour
  • 4 Gang: 8.3 Acres Per Hour
  • 5 Gang: 10.4 Acres Per Hour
• Capacity: Up to 7,500 golf balls (5 gangs)
  • 2 Gang: 3,000 Ball Capacity
  • 3 Gang: 4,500 Ball Capacity
  • 4 Gang: 6,000 Ball Capacity
  • 5 Gang: 7,500 Ball Capacity
• Motors: Brushless DC
• Battery: Up to 18 hours continuous run time (Pik'r XL); Up to 12 hours (Pik'r X); Safe lithium chemistry with 10+ years of life
• Collision Avoidance: 360° Cameras using artificial intelligence, physical and remote e-stop


• Positioning: Multi-constellation multi-band GNSS RTK with dual antenna for centimeter-level accuracy
• Optional Accessories: Additional batteries, LED floodlights, Structural mounts for sensors and implements, customizable colors

The Korechi Pik'r™-X sets a new standard for automated golf ball collection, offering unparalleled versatility, capacity, and advanced technology for driving ranges of all sizes.
